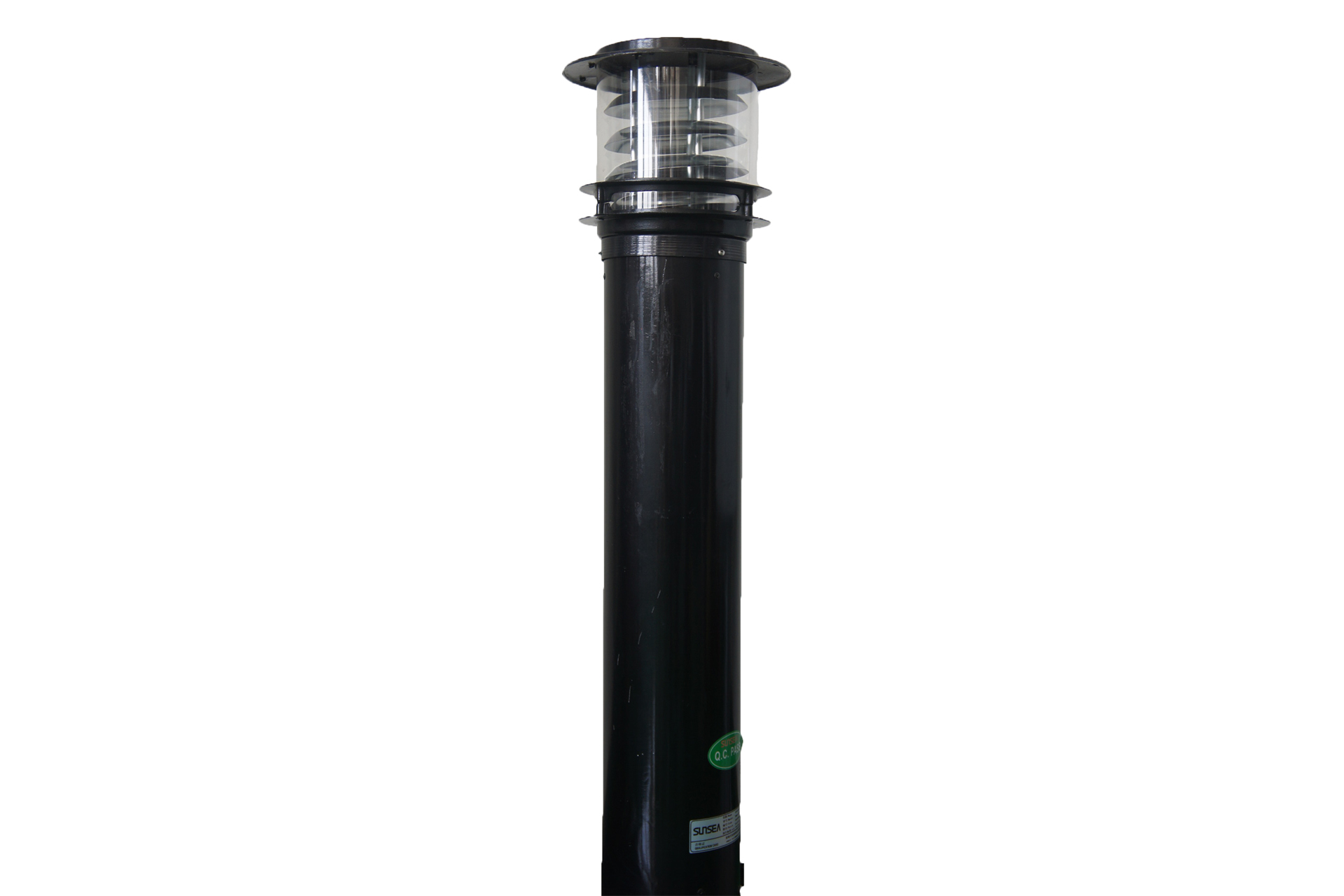

Lawn lamp type beautified antenna
This antenna is widely used in housing estate and parks where deep coverage is required. It owns features of easy installation, easy maintenance, beautified and low cost.
Download

Electrical parameters:

1.Frequency range: 806-960MHz/1710-2700MHz

2.Polarization: vertical

3.Gain: 5dBi/8dBi

4.Beam width: Hor360°, Ver33-70°/Hor360°, Ver18-70°

5.Directivity graph ovality:>±2°

6.VSWR: ≤1.5

7.Electrical angle: <11-13°

8.Input impedance: 50Ω

9.Power capacity: 250W

10.Interface type: 1*N Female


Product feature:

This antenna is widely used in housing estate and parks where deep coverage is needed. It owns features of easy installation, easy maintenance, beautified and low cost.
